This brief whitepaper provides a functional introduction to the SAMLv2 specifications. It is tailored to protocol designer and developer's perspectives. First a conceptual introduction is presented, next suggestions on how to study and learn SAML are given, and then more detailed aspects are discussed.

For information on whether any patents have been disclosed that may be essential to implementing this specification, and any offers of patent licensing terms, please refer to the Intellectual Property Rights web page for the SSTC (http://www.oasis-open.org/committees/security/ipr.php).

1 Introduction

1.1 Notation

Typographical conventions used in this document are:

Listings of XML schemas appear like this.

Example code listings appear like this.

This specification uses the following typographical conventions in text: <SAMLElement>, <ns:ForeignElement>, Attribute, Datatype, OtherKeyword.

2 Conceptual Introduction to SAML

SAML [[SAMLExecOvw]] defines an XML-based framework for crafting "security assertions", and exchanging them between entities. In the course of creating, or relying upon such assertions, SAML system entities may use SAML protocols, or other protocols, to convey an assertion itself, or to communicate about the "subject" of an assertion.

Thus one can employ SAML to make statements such as:

"Alice has these profile attributes and her domain's certificate is available over there, and I'm making this statement, and here's who I am."

Then one can cause such an assertion to be conveyed to some party who can then rely on it in some fashion for some purpose, for example input it into a local policy evaluation gating access to some resource.

Such applications of SAML are done in a particular "context of use". A particular context of use could be, for example, deciding whether to accept and act upon a SIP-based invitation to initiate a communication session.

The specification of just how SAML is employed in any given context of use is known as a "SAML profile". The specification of how SAML assertions and/or protocol messages are conveyed in, or over, another protocol is known as a "SAML Binding". Typically, a SAML profile specifies the SAML bindings that may be used in its context. Both SAML profiles and SAML bindings in turn reference other SAML specifications, especially the SAML Assertions and Protocols, aka "SAML Core", specification [[SAMLCore]].

This relationship between SAML specifications, as well as SAML-dependent specifications, is illustrated below in Illustration 1: Conceptual Dependencies between SAML Profiles, Bindings, and Core Specifications,as well as Target Protocols. The relationships between the various boxes in the diagrams is one of dependencies. Note how the boxes representing SAML Profiles—this means any SAML profile—depends upon both the SAML Core specification as well as SAML Bindings, and and of course also upon the specifications of the target profile(s).

Note that the SAML Assertions & Protocols specification, the SAML Core, is conceptually "abstract". It defines the bits and pieces that make up SAML Assertions, and their nominal semantics, but does not define how to actually put them to use in any particular context. That, as we've said, is left to SAML Profiles, of which there can be many.

The original SAML profiles, which concentrate on the problem domain of "Web Single Sign-On", are specified in [[SAMLProf]] (note that this specification is called out in the "SAML Profiles" box in Illustration 1: Conceptual Dependencies between SAML Profiles, Bindings, and Core Specifications,as well as Target Protocols). An example of a different, non-Web-SSO SAML profile is given in [SIP-SAML].

3 How to Study and Learn SAML

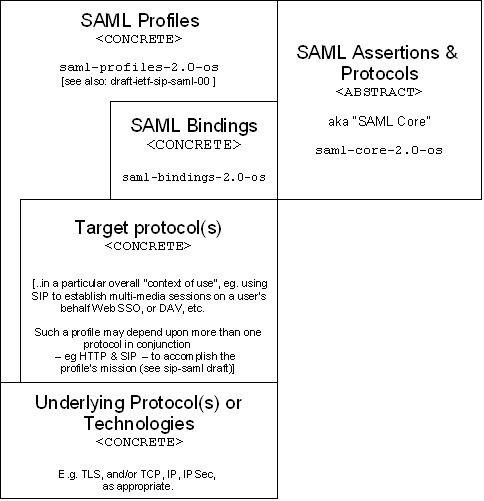

Illustration 1: Conceptual Dependencies between SAML Profiles, Bindings, and Core Specifications,as well as Target Protocols

Given the gist of the above discussion—that the descriptions of SAML applied in concrete contexts is given in SAML profiles—here is a suggested approach for reading the SAML specification set if one has as their goal "learning SAML":

Begin by studying various SAML Profiles, e.g. those given in [[SAMLProf]] and [SIP-SAML]. One will likely find the SAML Technical Overview whitepaper [[SAMLTechOvw]] helpful in this endeavor. It provides a detailed, illustrated expose of several of the SAML Web SSO profiles.
Only refer to the SAML Core specification [[SAMLCore]] as necessary for definitions and semantics of particular items refered to in the profiles and bindings you are studying.
Also, refer to the other SAML specifications and documents as necessary:
The SAML glossary [[SAMLGloss]] defines many of the key terms used throughout the SAML specification set.
SAML profiles often reference the SAML Metadata specification [[SAMLMeta]]. This spec defines how one "discovers" various configuration aspects of a SAML deployment. Often one needs to determine this information in order to establish communication.
The characteristics of specific SAML entity implementations—based upon the profiles in [[SAMLProf]], such as a "SAML Authority", or a "SAML-based service provider”—are given in the SAML Conformance specification [SAMLConf].
Various security aspects of the SAML profiles and bindings given in the SAMLv2 specification set are discussed and analyzed in the SAML Security Considerations specification [[SAMLSec]].

Studying SAML in this fashion is a more concrete, context-rich, practical-application approach than, say, starting cold with reading the rather abstract SAML Core specification.

4 SAML in More Detail

This section first discusses the notion of "SAML assertion profiles", and then follows with a more detailed description of SAML assertions as well as the abstract SAML request/response protocol, both of which are defined in the SAML Core specification [[SAMLCore]].

4.1 SAML Assertion Profiles

There is an additional subtle aspect of SAML profiles that is worth highlighting: the notion of "SAML assertion profiles". A SAML assertion profile is the specification of the specific SAML assertion contents in the context of a particular SAML profile. It is possibly further qualified by a particular implementation and/or deployment context. Two condensed examples of SAML assertion profiles are:

The SAML assertion must contain at least one authentication statement and no other statements. The relying party must be represented in the <AudienceRestriction> element. The SubjectConfirmation Method must be Foo. etc.
The SAML assertion must contain at least one attribute statement and may contain more than one. The values for the subject's profile attributes named "Foo" and "Bar" must be present. An authentication statement may be present. etc.

For a more in-depth example of an explicit SAML assertion profile, see section 6.1.4 "Assertion Profile Description" of [SIP-SAML].

Note that all SAML profiles will more or less explicitly encompass one or more assertion profiles. For example, all the SAML profiles specified in [[SAMLProf]] do so, however their "assertion profiles" are not explicitly labeled as such.

4.2 SAML Assertions

A SAML assertion is a package of information including issuer and subject, conditions and advice, and/or attribute statements, and/or authentication statements and/or other statements. Statements may or may not be present. The SAML assertion "container" itself contains the following information:

Issuing information:

Who issued the assertion, when was it issued and the assertion identifier.

Subject information:

The name of the subject, the security domain and optional subject information, like public key.

Conditions under which the assertion is valid:

Special kind of conditions like assertion validity period, audience restriction and target restriction.

Additional advice:

Explaining how the assertion was made, for example.

In terms of SAML assertions containing SAML attribute statements or SAML authentication statements, here are explanatory examples:

With a SAML assertion containing a SAML attribute statement, an issuing authority is asserting that the subject is associated with certain attributes with certain subject profile attribute values. For example, user jon@cs.example.com is associated with the attribute "Department", which has the value "Computer Science".
With a SAML assertion containing a SAML authentication statement, an issuing authority is asserting that the subject was authenticated by certain means at a certain time.
With a SAML assertion containing both a SAML attribute statement and a SAML authentication statement, an issuing authority is asserting the union of the above.

Examples of actual SAML assertions are given below in Section 5.

4.3 Abstract Request/Response Protocol

SAML defines an abstract request/response protocol for obtaining assertions. See Section 3 "SAML Protocols" of [[SAMLCore]]. A request asks for an assertion. A response returns the requested assertion or an error. This abstract protocol may then be cast into particular contexts of use by binding it to specific underlying protocols, e.g., HTTP or SIP, and "profiling" it for the specific use case at hand. The SAML HTTP-based web single sign-on profile is one such example (see Section 4.1 Web Browser SSO Profile of [[SAMLProf]]). Trait-based SIP communication session establishment, the topic of this specification, is another.

5 Example SAML Assertions

This section presents two examples of a SAML assertion, one unsigned, the other signed and thus is integrity protected, and attests to the originating author.

In the first example, below, the assertion is attesting with respect to the subject (lines 7-15) "Alice@example.com" (line 11). The validity conditions are expressed in lines 16-23, via both a validity period expressed as temporal endpoints, and an "audience restriction" stating that this assertion's semantics are valid for only the relying party named "example2.com". Also, the assertion's issuer is noted in lines 4-5.

In lines 24-36, Alice's telephone number is conveyed, in a "typed" fashion, using LDAP/X.500 schema as the typing means.

1 <Assertion ID="_a75adf55-01d7-40cc-929f-dbd8372ebdfc"

2 IssueInstant="2003-04-17T00:46:02Z" Version="2.0"

3 xmlns="urn:oasis:names:tc:SAML:2.0:assertion">

4 <Issuer>

5 example.com

6 </Issuer>

7 <Subject>

8 <NameID

9 Format=

10 "urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress">

11 Alice@example.com

12 </NameID>

13 <SubjectConfirmation

14 Method="urn:oasis:names:tc:SAML:2.0:cm:sender-vouches"/>

15 </Subject>

16 <Conditions NotBefore="2003-04-17T00:46:02Z"

17 NotOnOrAfter="2003-04-17T00:51:02Z">

18 <AudienceRestriction>

19 <Audience>

20 example2.com

21 </Audience>

22 </AudienceRestriction>

23 </Conditions>

24 <AttributeStatement>

25 <saml:Attribute

26 xmlns:x500=

27 "urn:oasis:names:tc:SAML:2.0:profiles:attribut

28 NameFormat=

29 "urn:oasis:names:tc:SAML:2.0:attrname-format:uri"

30 Name="urn:oid:2.5.4.20"

31 FriendlyName="telephoneNumber">

32 <saml:AttributeValue xsi:type="xs:string">

33 +1-888-555-1212

34 </saml:AttributeValue>

35 </saml:Attribute>

36 </AttributeStatement>

37 </Assertion>

Example 1: Unsigned SAML Assertion Illustrating Conveyance of Subject Attribute

In the second example, below, the information described above is the same, the addition is that this version of the assertion is signed. All the signature information is conveyed in the <ds:signature> element, lines 7-47. Thus this assertion's origin and its integrity are assured. Since this assertion is the same as the one in the first example above, other than having a signature added, the second example below addresses the same Security Considerations aspects, plus those requiring a Signature.

1 <Assertion ID="_a75adf55-01d7-40cc-929f-dbd8372ebdfc"

2 IssueInstant="2003-04-17T00:46:02Z" Version="2.0"

3 xmlns="urn:oasis:names:tc:SAML:2.0:assertion">

4 <Issuer>

5 example.com

6 </Issuer>

7 <ds:Signature xmlns:ds="http://www.w3.org/2000/09/xmldsig#">

8 <ds:SignedInfo>

9 <ds:CanonicalizationMethod

10 Algorithm="http://www.w3.org/2001/10/xml-exc-c14n#"/>

11 <ds:SignatureMethod

12 Algorithm="http://www.w3.org/2000/09/xmldsig#rsa-sha1"/>

13 <ds:Reference

14 URI="#_a75adf55-01d7-40cc-929f-dbd8372ebdfc">

15 <ds:Transforms>

16 <ds:Transform

17 Algorithm=

18 "http://www.w3.org/2000/09/xmldsig#enveloped-signature"/>

19 <ds:Transform

20 Algorithm=

21 "http://www.w3.org/2001/10/xml-exc-c14n#">

22 <InclusiveNamespaces

23 PrefixList="#default saml ds xs xsi"

24 xmlns=

25 "http://www.w3.org/2001/10/xml-exc-c14n#"/>

26 </ds:Transform>

27 </ds:Transforms>

28 <ds:DigestMethod

29 Algorithm="http://www.w3.org/2000/09/xmldsig#sha1"/>

30 <ds:DigestValue>

31 Kclet6XcaOgOWXM4gty6/UNdviI=

32 </ds:DigestValue>

33 </ds:Reference>

34 </ds:SignedInfo>

35 <ds:SignatureValue>

36 hq4zk+ZknjggCQgZm7ea8fI7...Hr7wHxvCCRwubfZ6RqVL+wNmeWI4=

37 </ds:SignatureValue>

38 <ds:KeyInfo>

39 <ds:X509Data>

40 <ds:X509Certificate>

41 MIICyjCCAjOgAwIBAgICAnUwDQYJKoZIhvcNAQEEBQAwgakxNVBAYTAlVT

42 MRIwEAYDVQQIEwlXaXNjb ..... dnP6Hr7wHxvCCRwubnZAv2FU78pLX

43 8I3bsbmRAUg4UP9hH6ABVq4KQKMknxu1xQxLhpR1ylGPdioG8cCx3w/w==

44 </ds:X509Certificate>

45 </ds:X509Data>

46 </ds:KeyInfo>

47 </ds:Signature>

48 <Subject>

49 <NameID

50 Format=

51 "urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress">

52 Alice@example.com

53 </NameID>

54 <SubjectConfirmation

55 Method="urn:oasis:names:tc:SAML:2.0:cm:sender-vouches"/>

56 </Subject>

57 <Conditions NotBefore="2003-04-17T00:46:02Z"

58 NotOnOrAfter="2003-04-17T00:51:02Z">

59 <AudienceRestriction>

60 <Audience>

61 example2.com

62 </Audience>

63 </AudienceRestriction>

64 </Conditions>

65 <AttributeStatement>

66 <saml:Attribute

67 xmlns:x500=

68 "urn:oasis:names:tc:SAML:2.0:profiles:attribute:X500"

69 NameFormat=

70 "urn:oasis:names:tc:SAML:2.0:attrname-format:uri"

71 Name="urn:oid:2.5.4.20"

72 FriendlyName="telephoneNumber">

73 <saml:AttributeValue xsi:type="xs:string">

74 +1-888-555-1212

75 </saml:AttributeValue>

76 </saml:Attribute>

77 </AttributeStatement>

78 </Assertion>

Example 2: Signed SAML Assertion Illustrating Conveyance of Subject Attribute
